1/3″ aşamalı tarama CMOS sensör, 2560×1440@20fps, BLC/3D DNR/ROI, 60mt Gece Görüş Mesafesi, 2,7 mm – 13,5 mm değişken odaklı lens, IP67,IK10, H.265+, H.265, H.264+, H.264, 120 dB WDR, Renk: 0,01 Lüks @ (F1.2, AGC AÇIK), 0,018 Lüks @ (F1.6, AGC AÇIK), Dahili mikro SD/SDHC/SDXC kart yuvası, 128 GB’a kadar
Key Features
1/3″ progressive scan CMOS BLC/3D DNR/ROI
2560 × 1440@20fps Up to 60 m IR range
2.7 mm to 13.5 mm varifocal lens IP67,IK10
H.265+, H.265, H.264+, H.264 120 dB WDR
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux
@ (F1.6, AGC ON)
Built-in micro SD/SDHC/SDXC card slot,
up to 128 GB
Camera
Image Sensor 1/3″ Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter
Slow Shutter Yes
Auto-Iris No
Day & Night IR cut filter
Digital Noise Reduction 3D DNR
WDR 120 dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
Lens
Focal Length 2.7 to 13.5 mm
Aperture F1.6
Focus Auto
FOV
Horizontal field of view: 98°to 28°
Vertical field of view: 51°to 16°
Diagonal field of view: 115°to 32°
Lens Mount Φ14
IR
IR Range Up to 60 m
Wavelength 850 nm
Compression Standard
Video Compression Main stream: H.265/H.264
Sub-stream/Third stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-set
Region of Interest 1 fixed region for main stream and sub-stream
Behavior Analysis Line crossing detection, intrusion detection,
Face Detection Yes
Max. Resolution 2560 × 1440
Main Stream
Max. Frame Rate
50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third steam
Max. Frame Rate
50Hz: 1080P@1fps
60Hz: 1080P@1fps
Image Enhancement BLC, 3D DNR,HLC
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or
web browser
Specification
Available Models

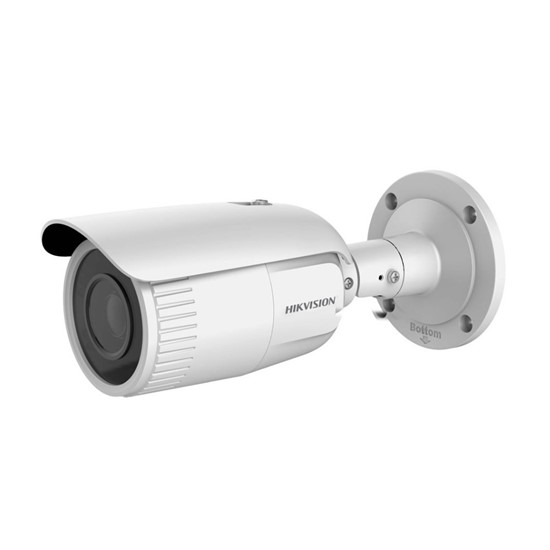

DS-2CD1643G0-IZS/UK (2.7 mm to 13.5 mm)
Day/Night Switch Auto, scheduled
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal
login
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP,
802.1X, QoS, IPv6, UDP, Bonjour
General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Firmware Version 5.5.3
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, iVMS-4500, iVMS-5200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio 1 input (line in/mic in), 1 output (line out), mono
Alarm 1-ch input, 1-ch output (up to 12 VDC 1A or 10 VAC 500 mA)
Reset Button Yes
Audio
Environment Noise Filtering Support
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
General
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply 12 VDC ± 20%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W
Protection Level IP67,IK10
TVS 2000V lightning protection, surge protection and voltage transient protection
Material Metal
Dimensions Φ 105 mm × 244.4 mm (Φ 4.1″ × 9.6″)
Weight Camera: approx. 1035 g (2.3 lb.)
With package: approx. 1550 g (3.4 lb.)
