1/2.8″ aşamalı tarama CMOS, 3D DNR (Dijital Gürültü Azaltma), 1920×1080 ile 2MP Çözünürlük, 50mt Gece Görüş Mesafesi, 2,7 mm – 13,5 mm motorlu değişken odaklı lens, PoE (Ethernet Üzerinden Güç), IP67 ve IK10 Koruma Sınıfı, H.265+, H.265, H.264+, H.264, Üçlü akış, 120 dB WDR (Geniş Dinamik Aralık)

Key Features
1/2.8″ progressive scan CMOS

3D DNR (Digital Noise Reduction)

1920 × 1080@30fps

Up to 50 m IR range

2.7 mm to 13.5 mm motorized vari-focal lens

PoE (Power over Ethernet)

IP67, IK10

H.265+, H.265, H.264+, H.264

Triple stream

120 dB WDR (Wide Dynamic Range)

Camera
Image Sensor 1/2.8″ progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter
Slow Shutter Yes
Auto-Iris No
Day &Night IR cut filter
Digital Noise Reduction 3D DNR
WDR 120dB WDR
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 360°

Lens
Focal length 2.7 to 13.5 mm
Aperture F1.6
Focus Auto
FOV
Horizontal field of view: 98°to 34°
Vertical field of view: 52°to 19°
Diagonal field of view: 116°to 40°
Lens Mount Φ14

IR
IR Range Up to 50 m
Wavelength 850 nm

Compression Standard
Video Compression Main stream: H.265/H.264
Sub stream/Third stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Smart Feature-set
Region of Interest 1 fixed region for main stream and sub-stream
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes

Max. Resolution 1920 × 1080
Main Stream
Max. Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third steam
Max. Frame Rate
50Hz: CIF@1fps
60Hz: CIF@1fps
Image Enhancement BLC, 3D DNR,HLC
Image Setting Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or
web browser
Specification
Available Model

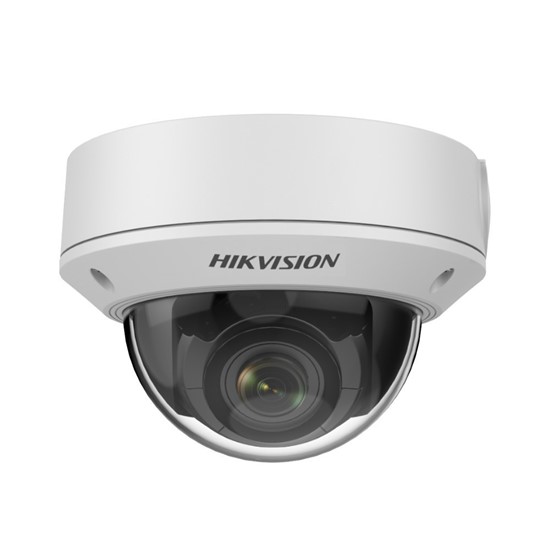

DS-2CD1723G0-IZS/UK (2.7 mm to 13.5 mm)
Day/Night Switch Auto, scheduled

Network
Network Storage Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal
login
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP,
802.1X, QoS, IPv6, UDP, Bonjour
General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Firmware Version 5.5.2
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, iVMS-4500, iVMS-5200
Web Browser IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+

Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio 1 input (line in/mic in), 1 output (line out), mono
Alarm 1-ch input, 1-ch output (up to 12 VDC 1A or 10 VAC 500 mA)

Audio
Environment Noise Filtering Support
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

General
Operating Conditions -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 0.8 A, Max: 10 W; PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.2 A, Max: 12 W
Protection Level IP67, IK10
TVS 2000V lightning protection, surge protection and voltage transient protection
Material Metal & Plastic
Dimensions
Camera: Φ 141 mm × 99.9 mm (5.6″ × 3.9″)
With package: 140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1″)
Weight Camera: Approx. 830 g (1.8 lb.)
With package: Approx. 1070 g (2.4 lb.)
